Case Study: Bridging the Past by
Flavin Architects

Slatted Wrap

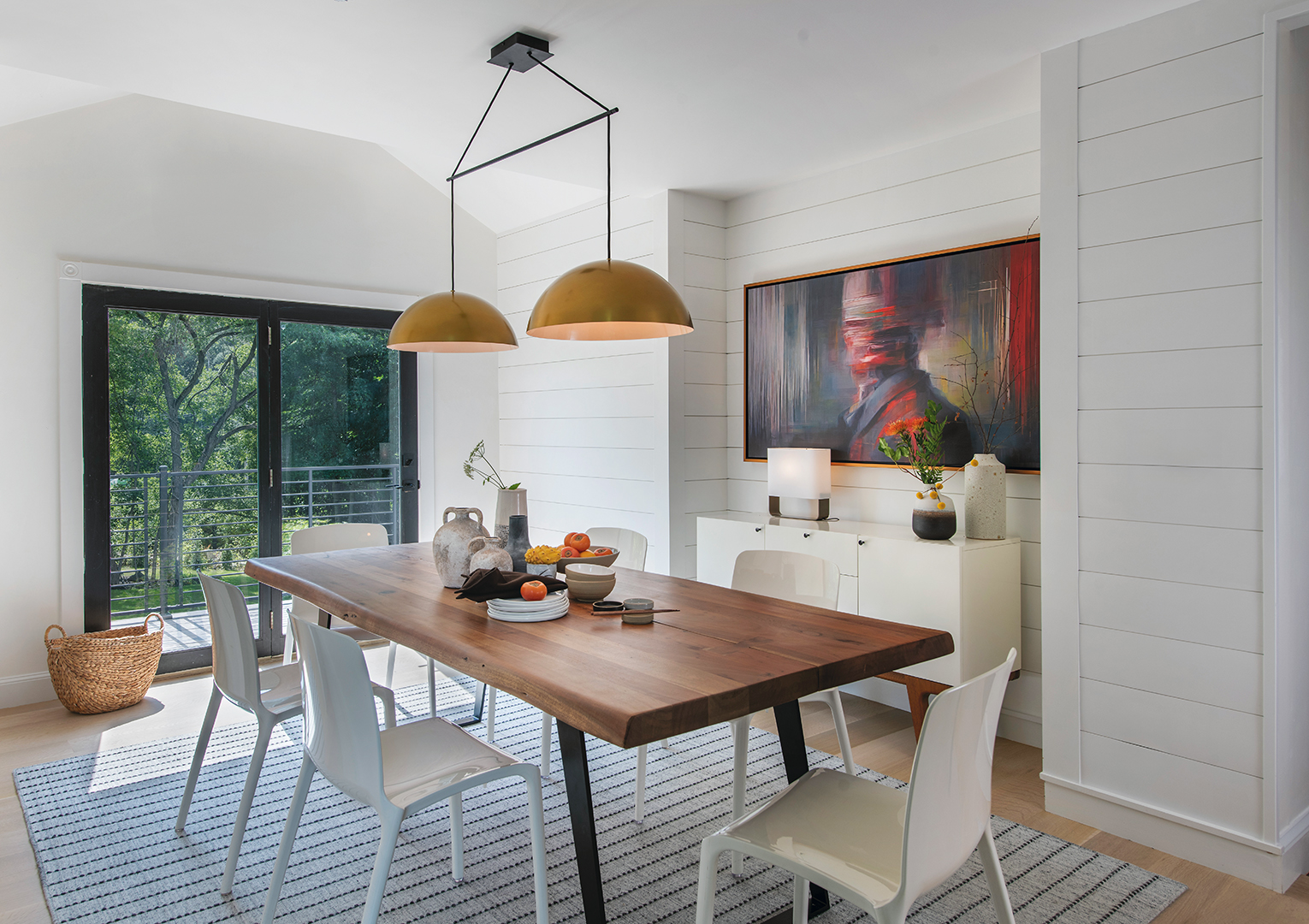

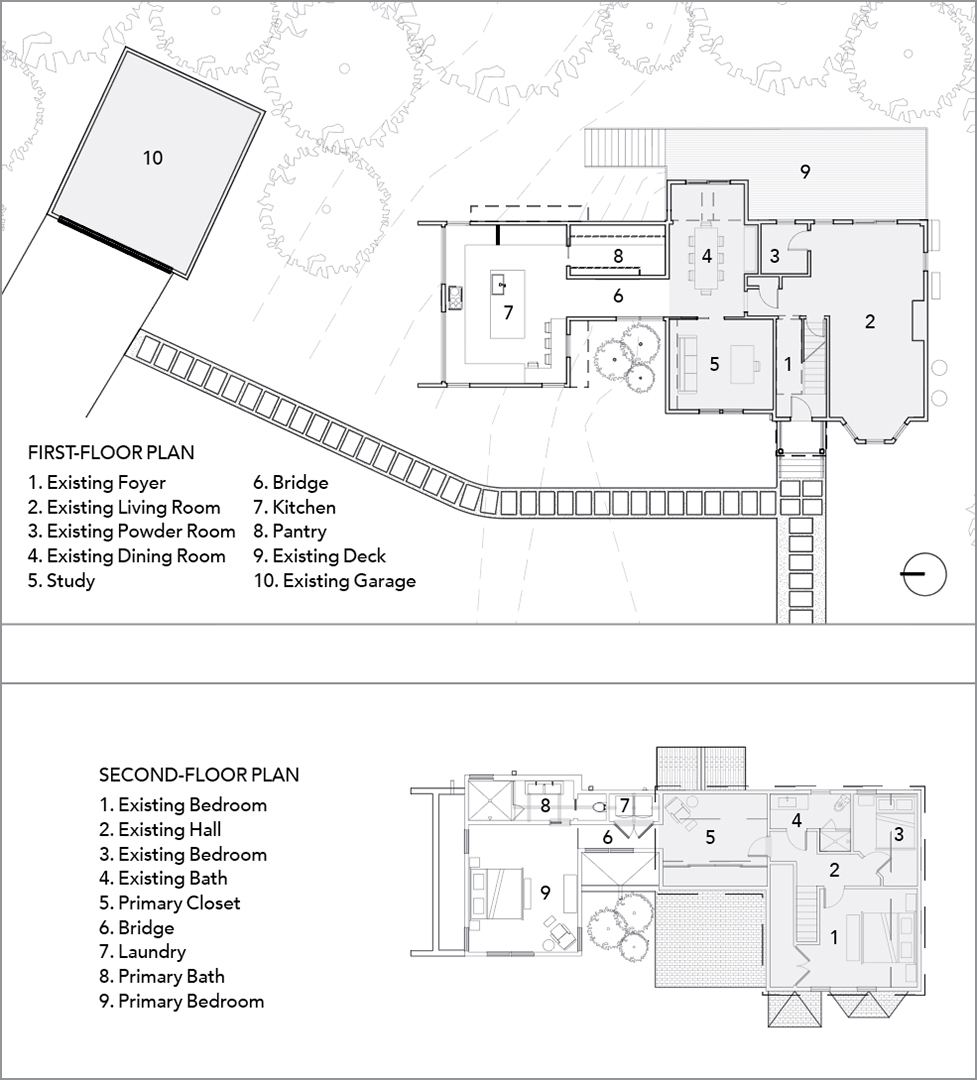

Some deft reshuffling resulted in a flow that feels reassuringly intuitive. The bulk of the old kitchen had extended across the back wall, where the bridge now enters the house. After the cabinetry was removed, part of the old kitchen became a dining room that retains the original shiplap walls. The remaining space was transformed as an office with two new windows—the only change to the house’s exterior.

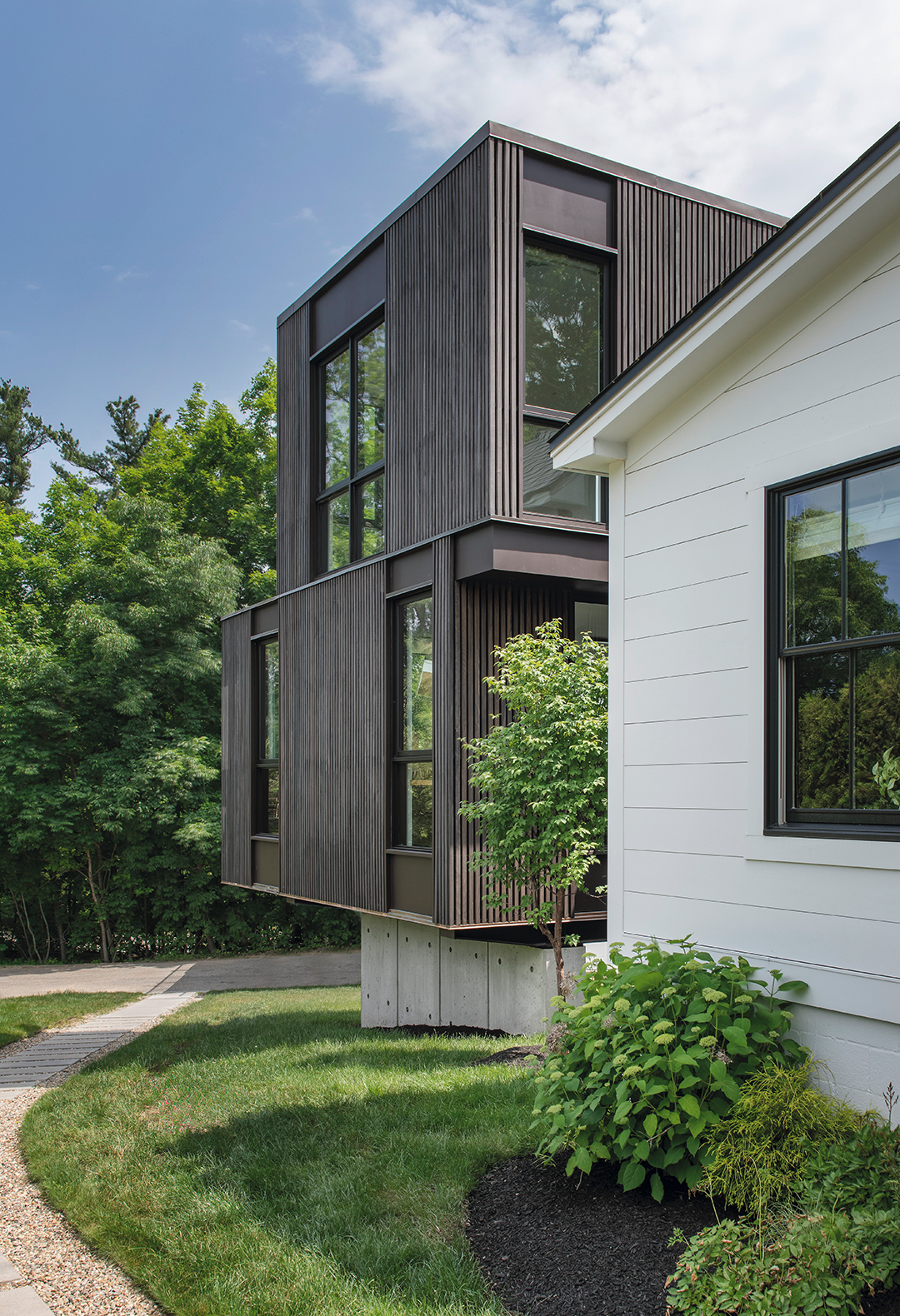

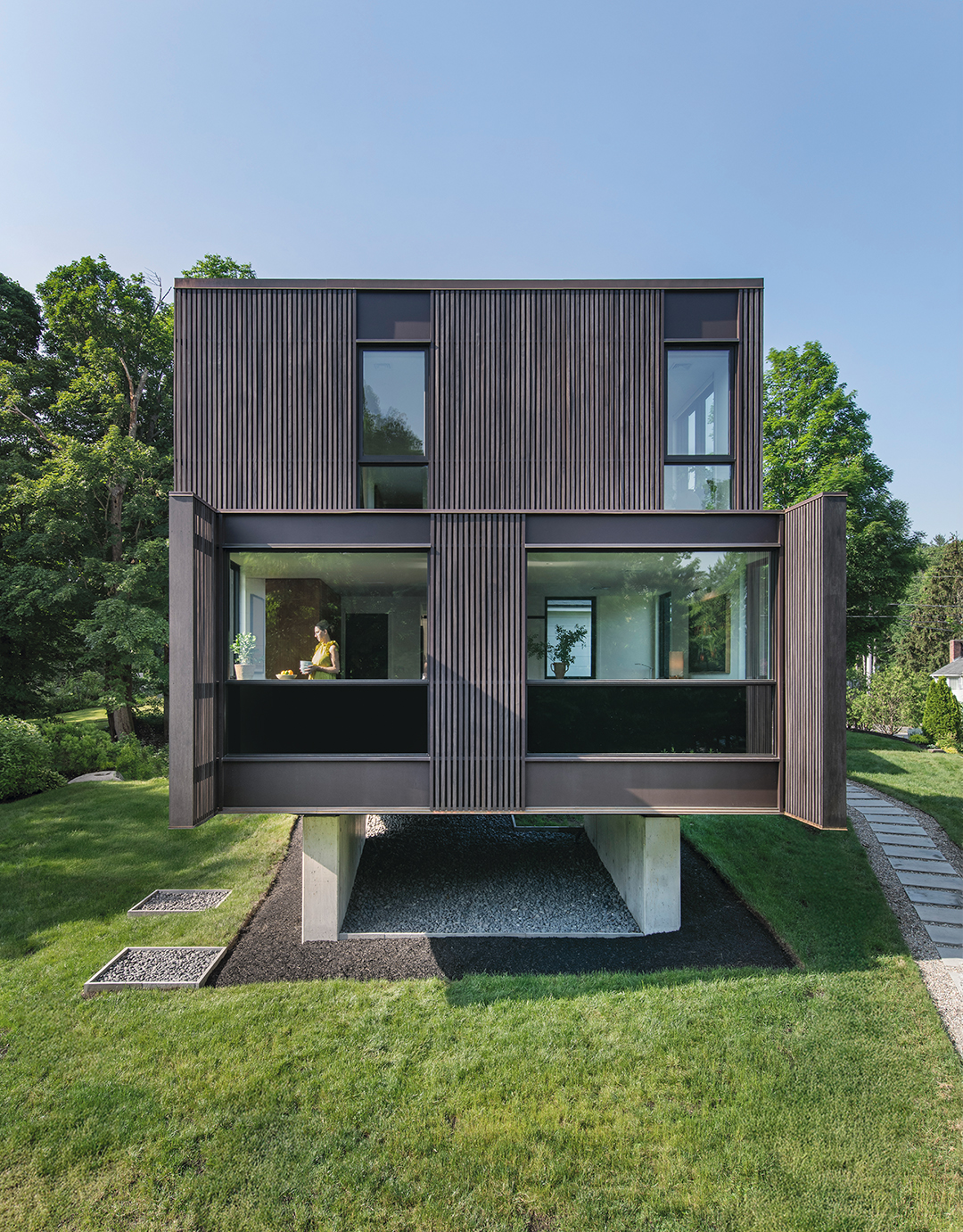

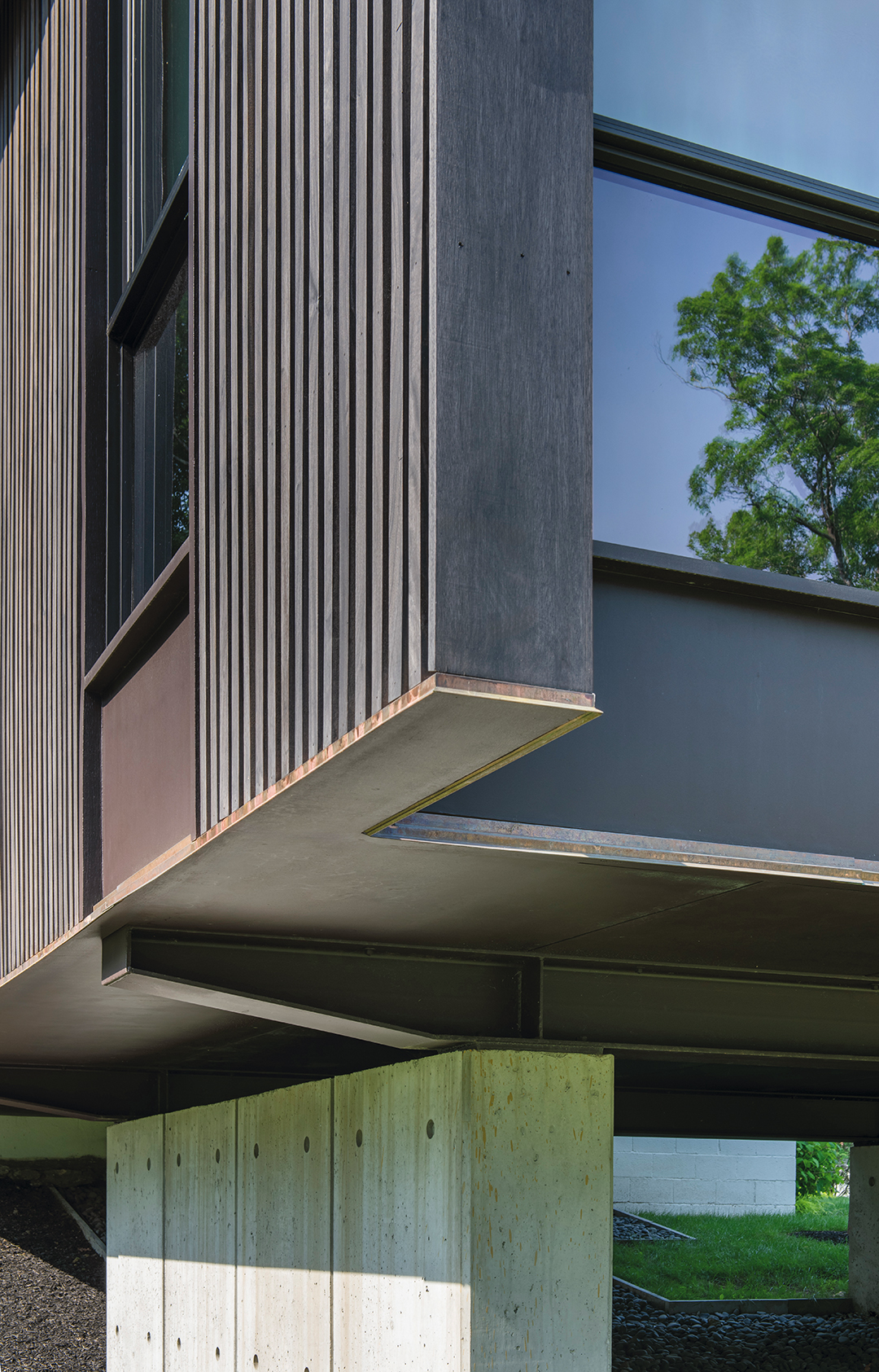

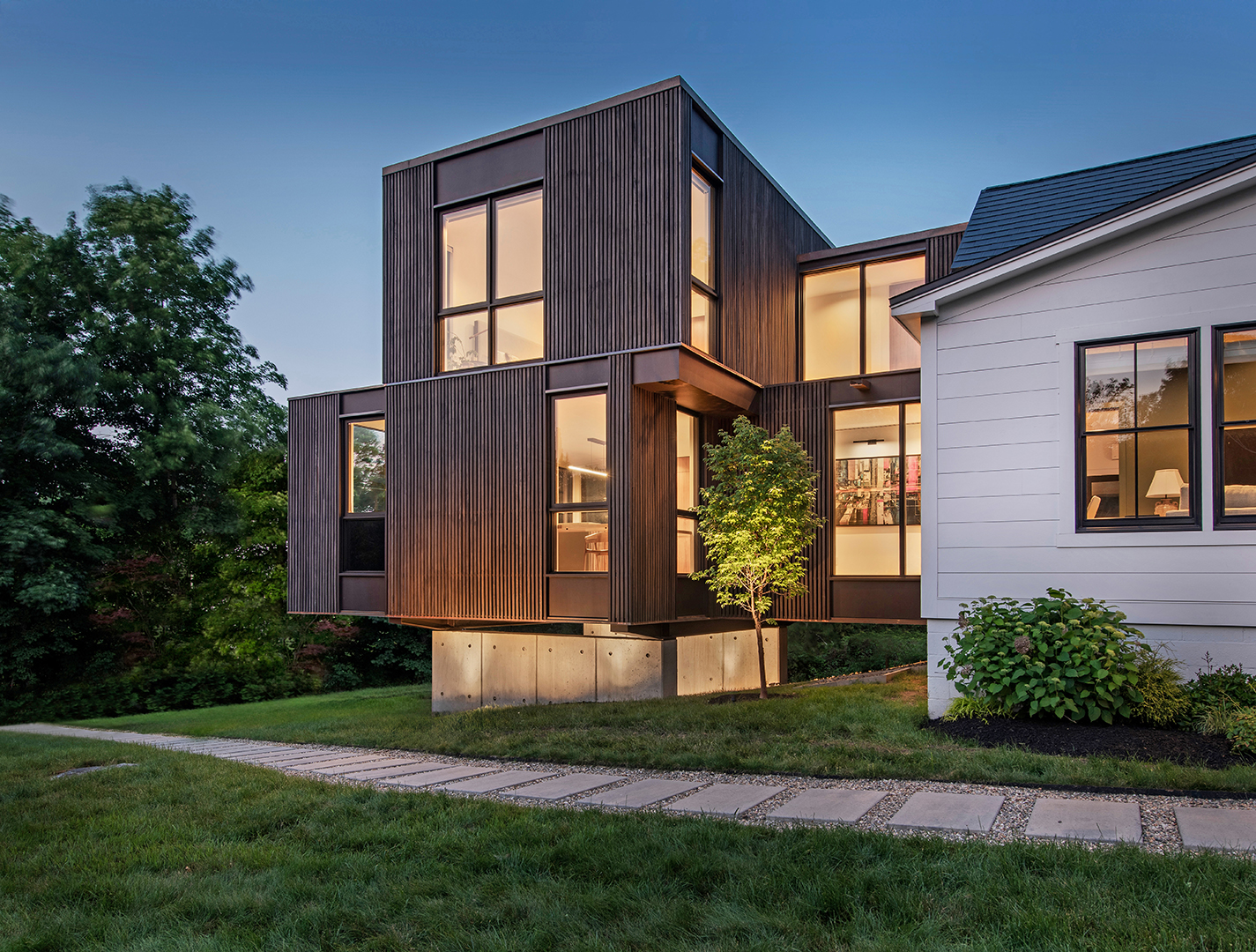

Of course, the big advantage in creating a virtually standalone structure is the ability to get sunlight on all four sides. Perched atop the piers, the addition rests on two steel beams that taper at the ends as the loads decrease with the cantilever. To create a lightweight feeling, the second story steps in, as does the bridge, narrowing to fit under the eaves on the old home’s gable end.

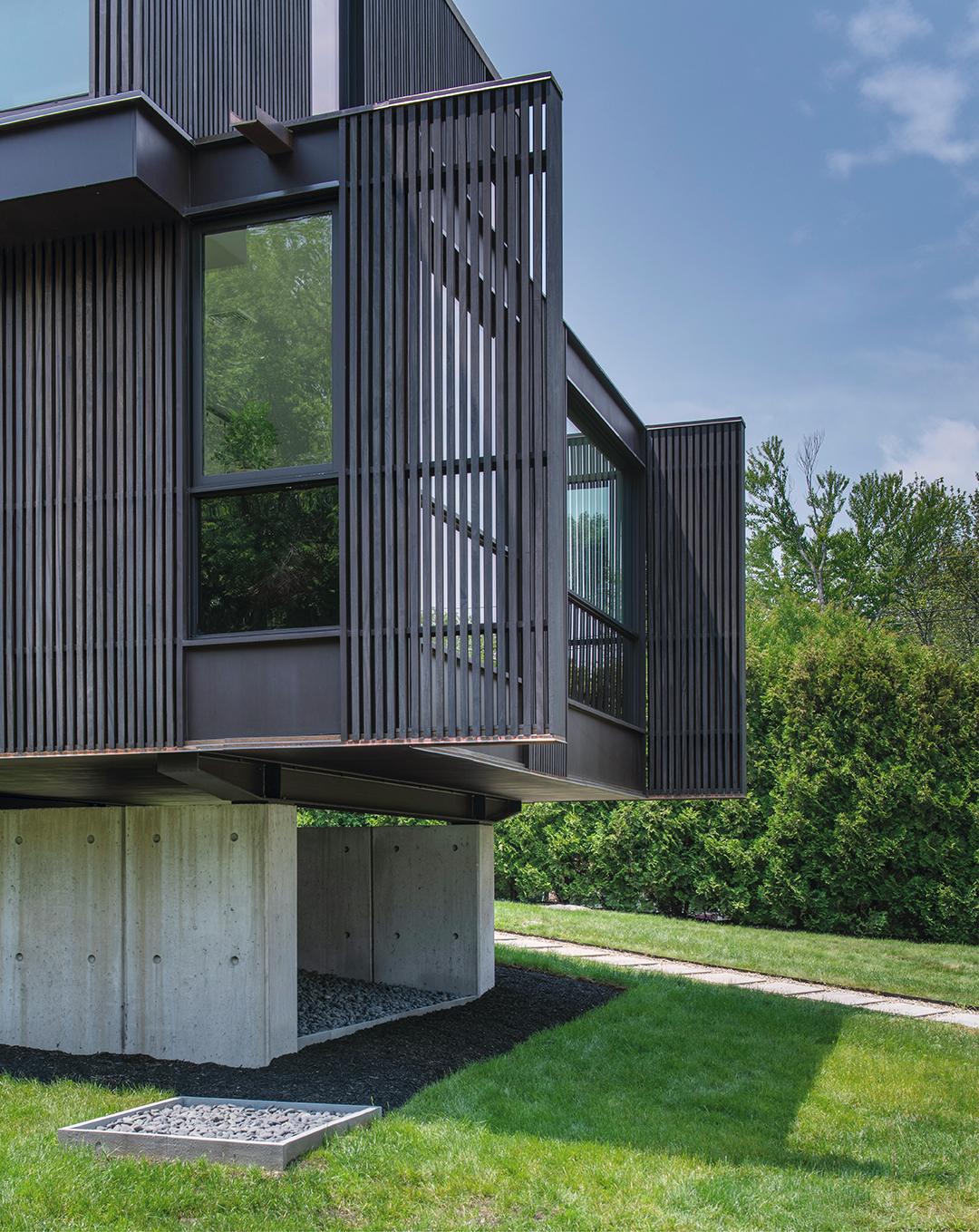

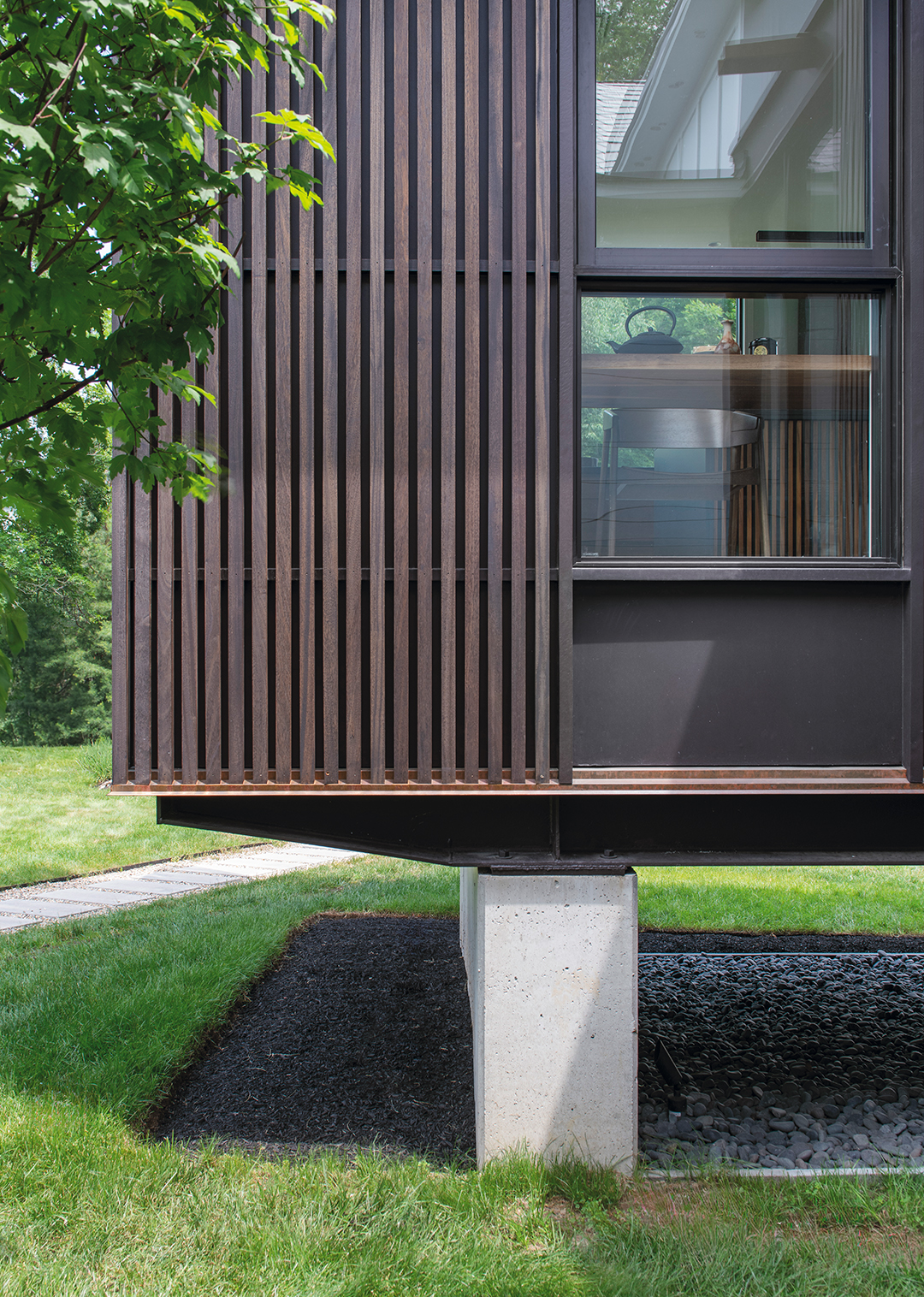

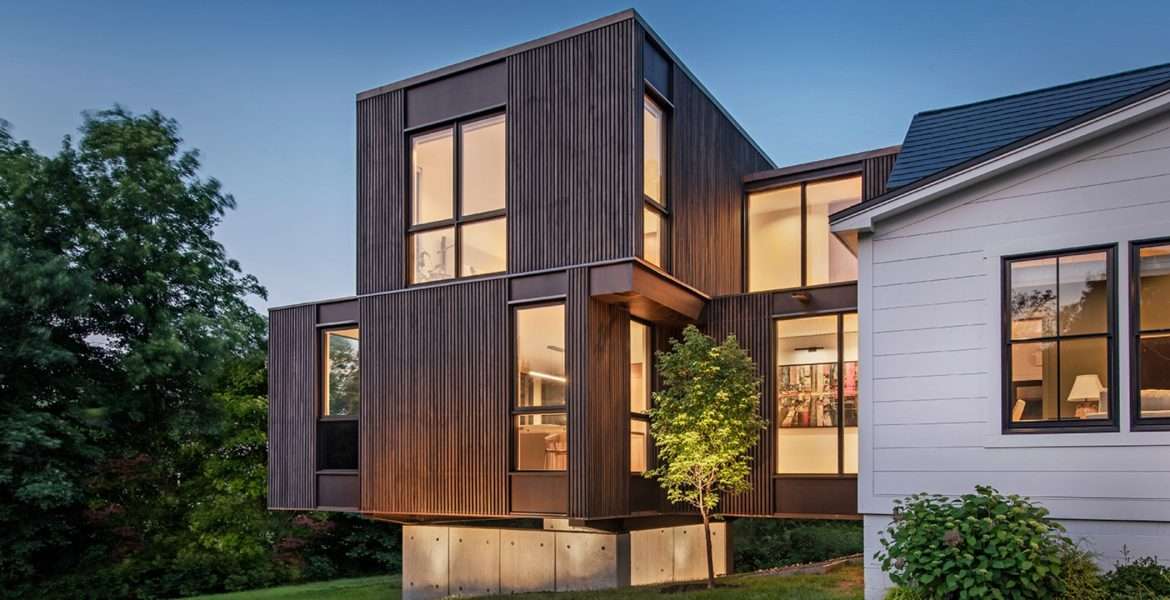

True to plan, the character of the farmhouse and addition couldn’t be more different. The addition is wrapped in vertical, dark-stained mahogany slats—a riff on the farmhouse’s horizontal board and batten siding. Colin applied the slats as a rainscreen system, providing a contrast to the dark gray, painted cement spandrel panels that extend the verticality of the windows. “It’s thematic,” he says. “We alternated the slats with windows for interest and to align with the functionality of the house. We have a spandrel panel above and below the windows, but the rainscreen runs full height, with copper flashing at the base.” The slats extend several feet past the corners at the rear, which has the effect of elongating the new volume and screening the interior from view of the road.

Upstairs, Downstairs

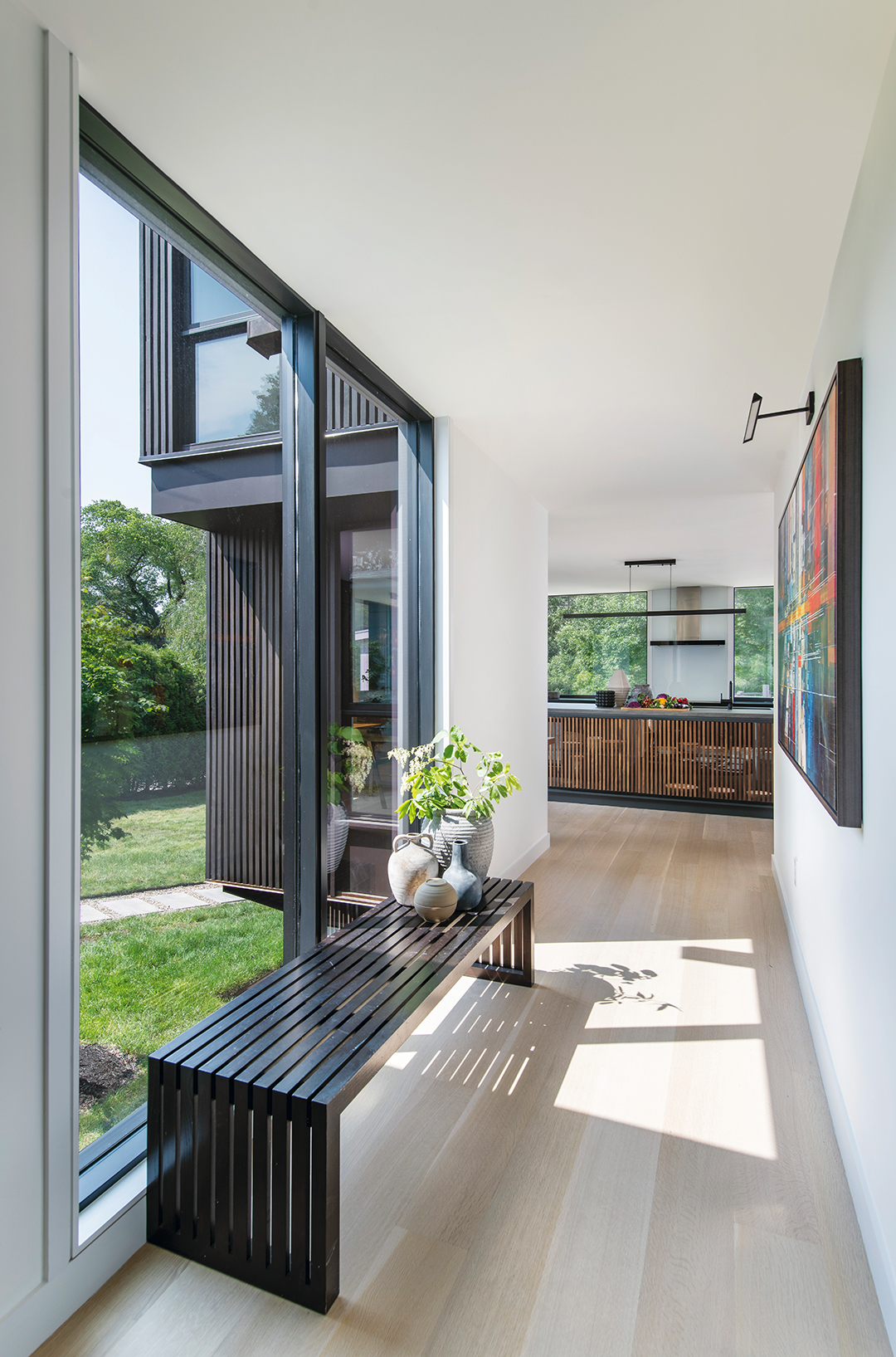

Similar themes show up inside. A view from the bridge underscores that cohesion. “There is a wonderful moment on the bridge where you are emerging from the old house and get an exterior view of the addition,” says Colin. “On the western side, the screen starts to open up as you look straight on, almost dematerializing the building as it moves out into nature.” A paperbark maple planted near the bridge marks the nexus of old and new.

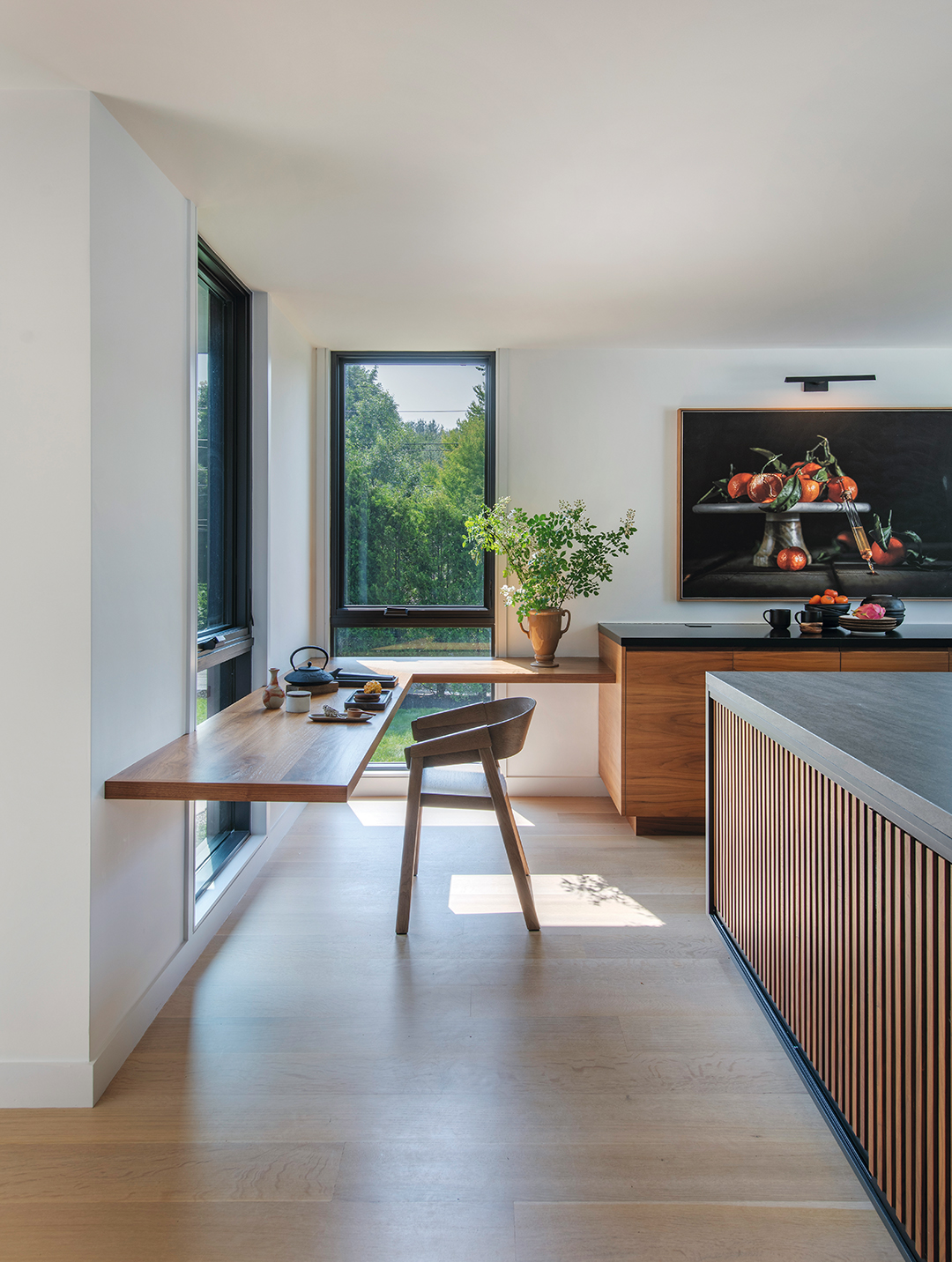

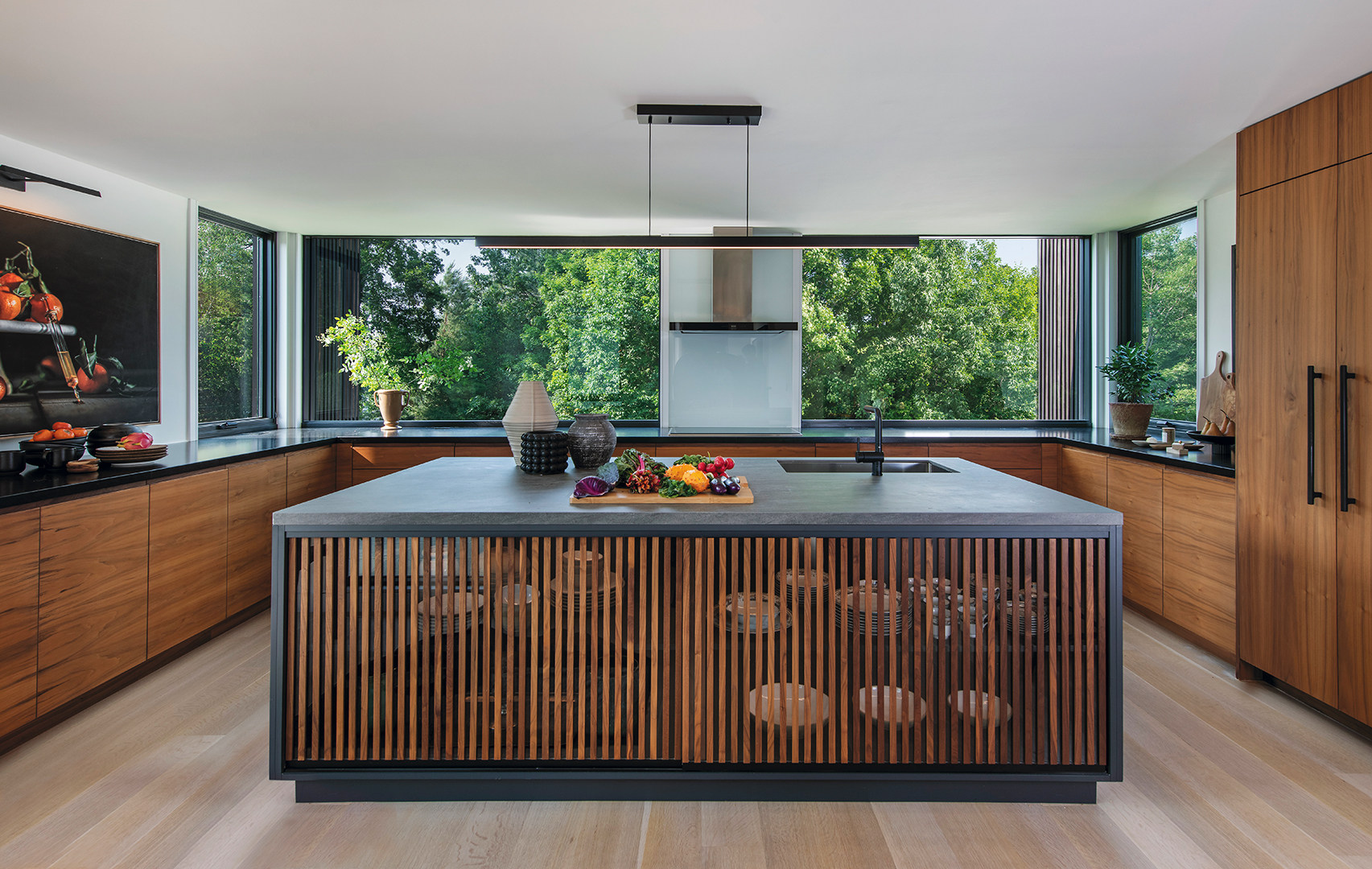

That screen motif reappears on the kitchen island, a repository for dishware, where walnut slats over glass keep the dishes visible without being on full display. The cabinetry is also walnut; paired with 7-inch riftsawn and quartersawn white oak floors and dark countertops made of sintered stone with a pebble finish, the material palette produces a crisp, warm feeling. “The clients wanted a super functional kitchen and were comfortable without having upper cabinets, which allows for clean lines and all this glass with views of the mixed forest,” says Colin. On the west side, the countertop drops to table height and turns the glassy corner. For these passionate cooks, “the idea was that people might sit in a chair, not up on stools,” he says.

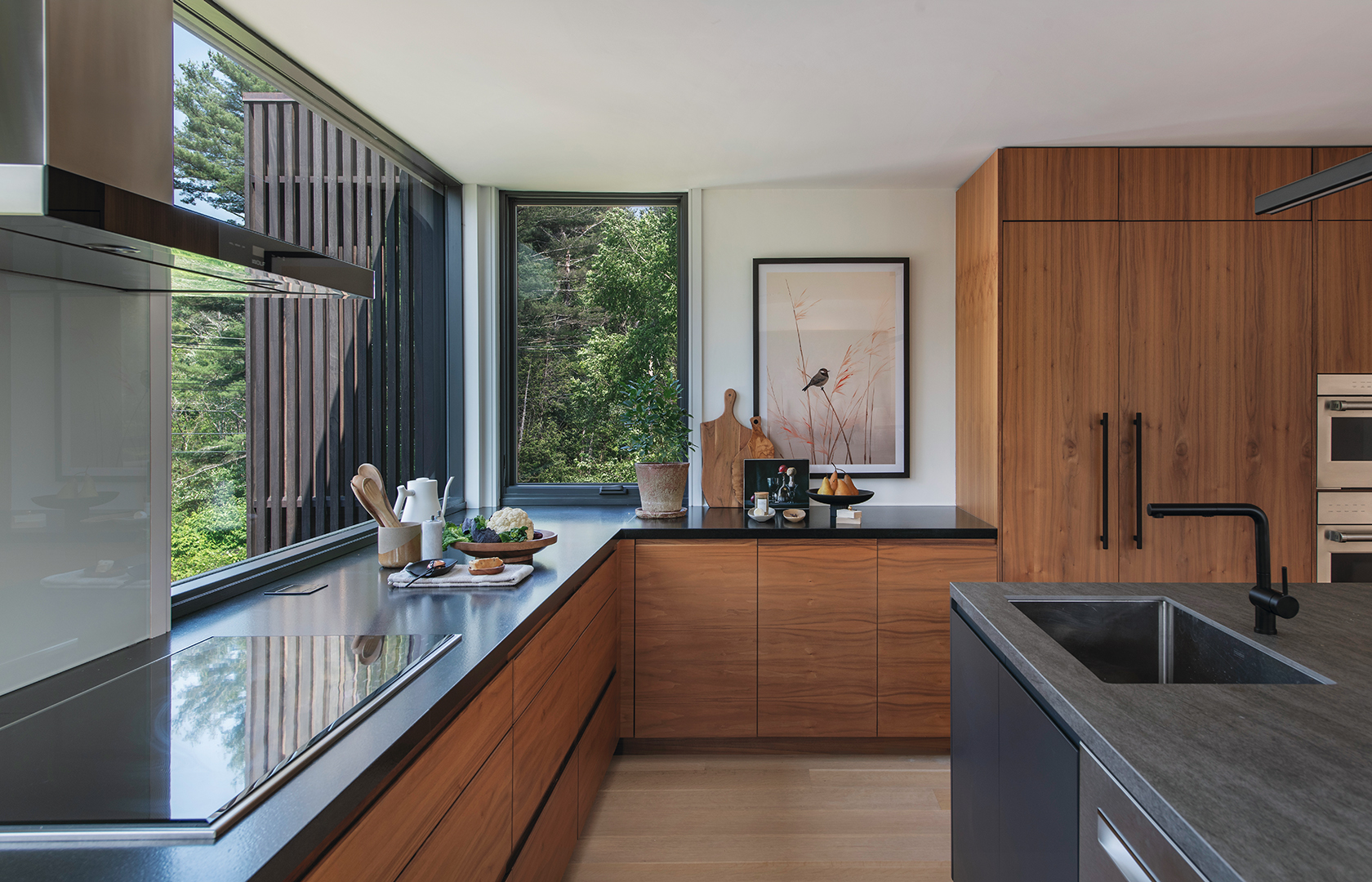

Windows along the U-shaped workspaces come down to the countertops, which discreetly hold electrical outlets. Behind the cooktop, back-painted spandrel glass forms an opaque backdrop for a minimalist exhaust hood whose quiet, thin profile is echoed in the island pendant. Tucked behind the bridge on the east is a substantial pantry that absorbs the clutter of a busy kitchen.

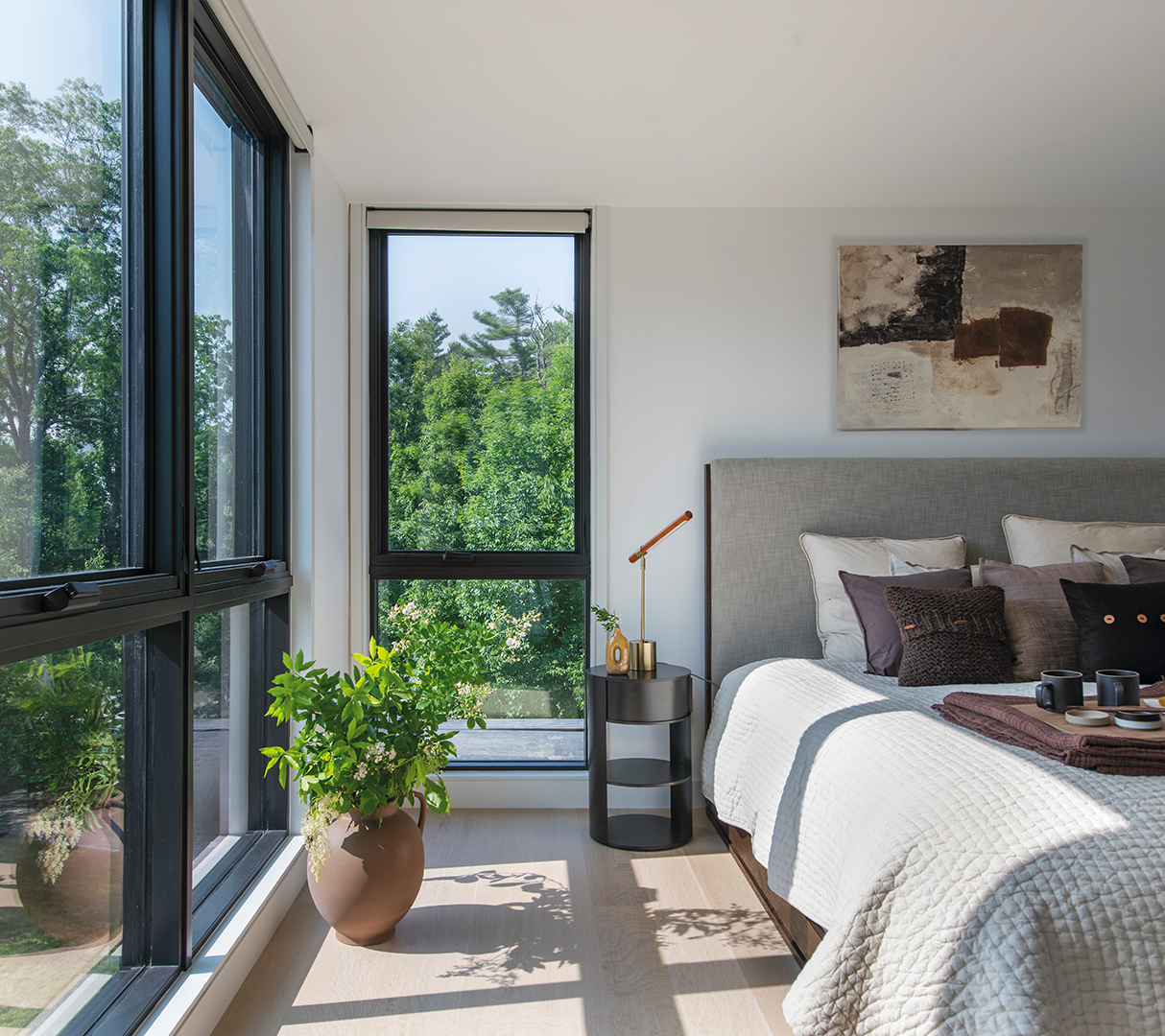

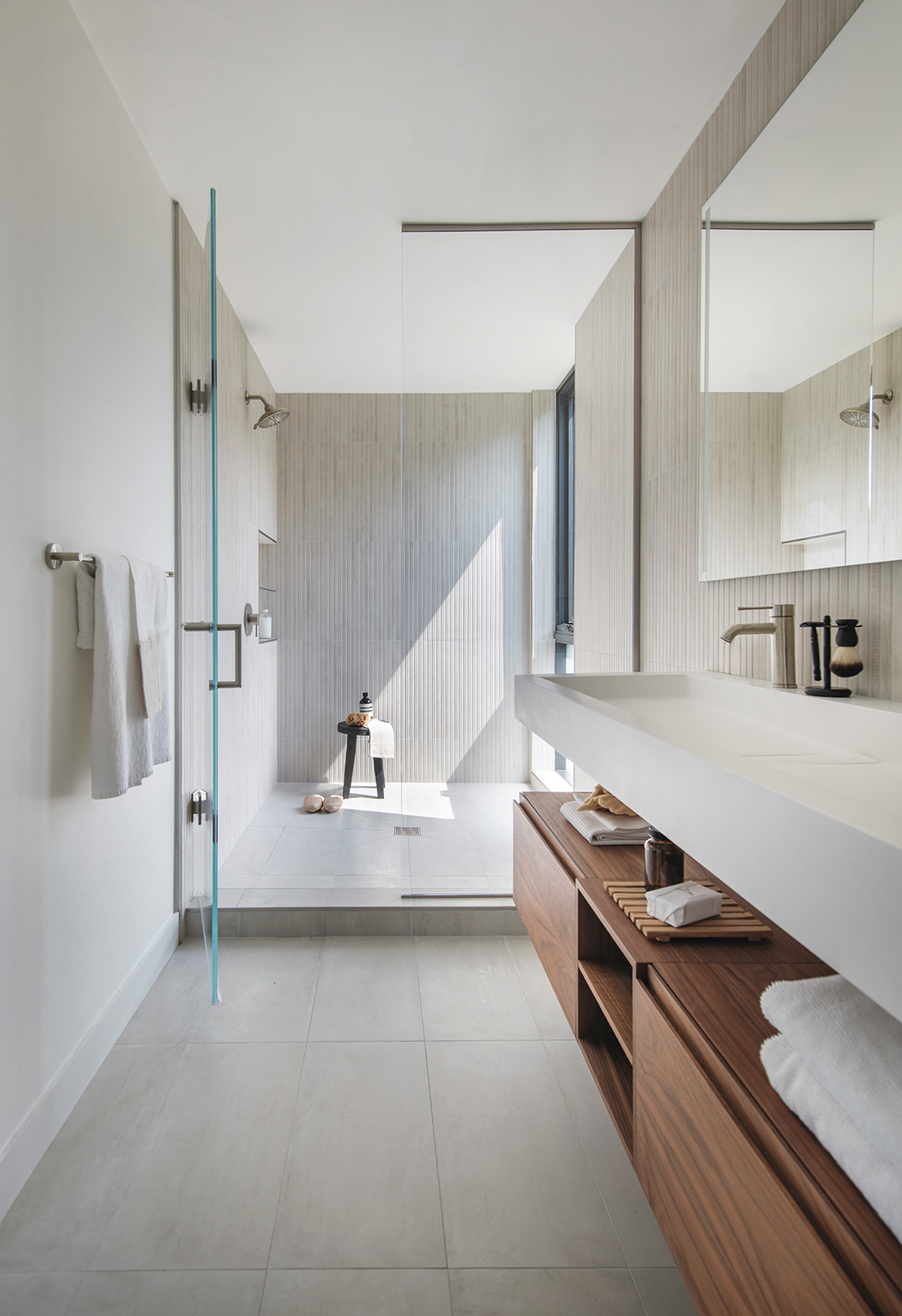

Upstairs, entrance to the new primary suite is through a former bedroom reconfigured as a primary closet and sitting room. The couple’s sleeping area overlooks the thicket of trees, and the bath benefits from a strategically placed window. Slanting light grazes the thin, vertical strips of wall tile, and a long bowl sink floats above walnut cabinetry.

Fit and Finish

Though the project was small in footprint, it pushed the boundaries on structural alignments. “It required connecting a home’s most challenging spaces—kitchen, bathroom, laundry—to the original structure,” says project architect Heather Souza. “And it came through at a time when energy code became more stringent in Massachusetts. Without a traditional foundation, we needed to make sure a heavy insulation blanket wrapped underneath the building, so they’re not feeling a strong [temperature] contrast while walking from the old part to the new. We used closed cell spray foam to get a high R value and ensured that drain and water lines connecting back to the main house were insulated from the cold.”

Builder Jim DePaolo handled additional hurdles. On the roof, “we lined up the roof slopes so everything would tie in and look like what Flavin drew,” he says. “None of it was easy.” Custom copper scuppers on the bridge direct rainwater to the Mexican pebbles spread under the addition, where it drains into a cistern.

Another challenge was executing the concrete piers. “Very rarely in New England is concrete used as a finish architectural material,” Colin says. Jim adds: “We made precast panels with buttonholes for holding the forms together and carefully poured the concrete to avoid getting a lot of air in the forms, to get a really smooth wall.” His crew also custom-stained the mahogany siding to tone down its rust-colored cast.

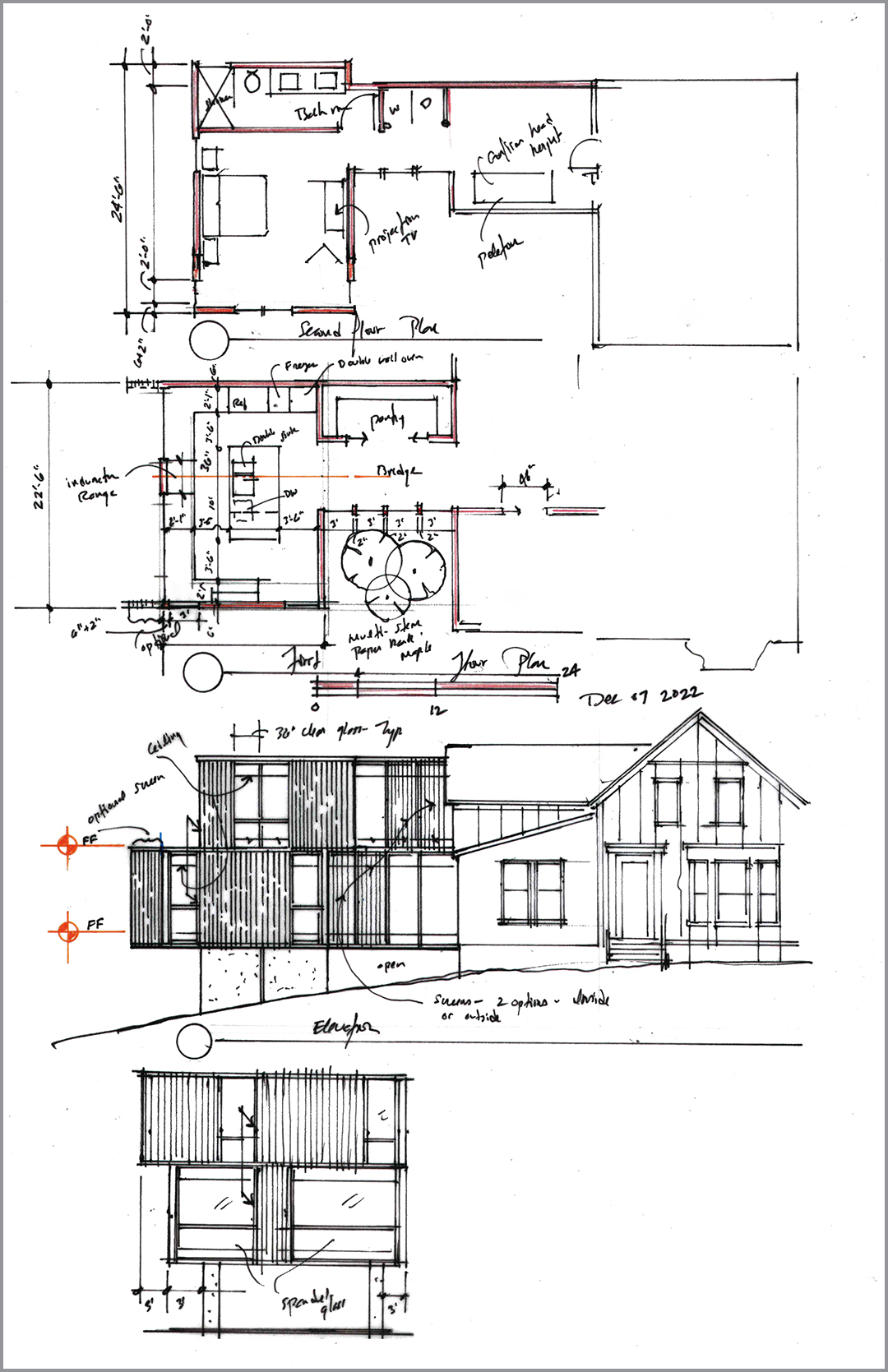

If the modern volume became something of a curiosity in this neighborhood of traditional homes, at least the reception was positive. “We were hoping the neighbors would be happy and have only heard good things,” Colin says. “People wanted to learn more about it.” The clients, too, talk about how wonderful the kitchen is, as the piece that really improved their lives. He adds, “When they’re in the garden, they look up and notice things that bring interest to the exterior—details they never fully understood in the drawings.”
